测温范围600~1400°C ， 700~1800°C , 800~2500°C

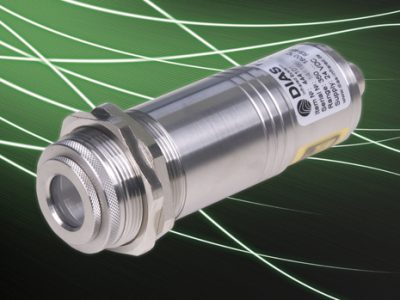

PYROSPOT DSR 44N is a small and compact ratio for non-contact spot temperature measurement from 600 °C to 2500 °C even in areas which are hard to access.
Today completely monitored production processes are decisive for the product quality. Especially in metal processing, in foundries, in forges or in the production of glass, the measuring instruments used for the control of the production process are exposed to extreme harsh environments. With the new PYROSPOT DSR 44N, DIAS Infrared has developed a robust, small and affordable ratio pyrometer for measuring high temperatures from 600 °C to 2500 °C independent from emissivity. At Hanover Messe from April 24-28, 2017 in Hall 17, booth F63, DIAS Infrared will be answering questions about high temperature measurement and offering a large range of temperature measurement devices.
Infrared measuring devices for continuous industrial use
With the help of infrared measurement technology, manufacturing processes up to 3000 °C can be monitored continuously and in real time even under difficult ambient conditions. “This only works with devices whose technical parameters like the spectral range are exactly matched to the application,” explains Katrin Schindler, Marketing Manager at DIAS Infrared GmbH. The specialist for non-contact temperature measurement technology is celebrating its 25th anniversary this year and has a lot of experience in high temperature measurement.
使用红外测温设备的帮助，即使在很困难的环境情况，都可以连续和实时地监控测量过程达到3000 °C。德国DIAS红外公司的市场部经理Katrin Schindler说，“但这需要红外测温设备的技术参数如光谱范围必须和实际应用要相互匹配，才能达到要求”。德国DIAS大的非接触红外测温技术专家们要在今年庆祝公司二十五周年庆，其技术专家们在高温测量技术方面都有很充足的经验。
The small, compact devices allow temperatures to be recorded contactlessly in areas that are difficult to access. The temperature measurement with the new PYROSPOT DSR 44N is possible in a range from 600 to 2500 °C. The advantage for the user is that the emissivity and environmental influences such as smoke or steam cannot influence the measuring accuracy, or only slightly, due to the short-wavelength spectral range of 0.7 μm to 1.1 μm.
Like all DIAS devices, the ratio pyrometer is designed for continuous use, for example in quality and process control in the metal, glass and cement industries.
Features of the PYROSPOT DSR 44N ratio pyrometer:
1、Measuring range from 600 °C to 2500 °C测温范围600~2500°C
2、Spectral range from 0.7 μm to 1.1 μm 波长0.7~1.1μm
3、Standard outputs for industry (analog and digital)标准工业用模拟和数字输出
4、Robust housing with easy connection possibilities坚固耐用，易于连接
5、Comfortable evaluation and parameterization software PYROSOFT Spot 软件易用
6、Extensive accessories 其它附件
